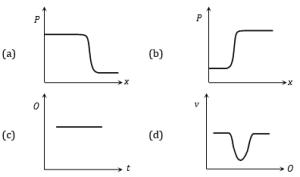

4. Water flows through a frictionless duct with a cross-section varying as shown in fig. Pressure p at points along the axis is represented by

Explanation-(a) When cross-section of duct is decreased, the velocity of water increased and in accordance with Bernoulli’s theorem, the pressure P decreased at that place.

(48)
